Quick Details

  • Type: Digital Printer
  • Condition: New
  • Plate Type: Roll to roll printer
  • Place of Origin: China (Mainland)
  • Brand Name: FY Union
  • Model Number: FY-3208R
  • Usage: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, vinyl sticker banner poster printer
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: AC220V,50HZ
  • Gross Power: 2750W
  • Dimensions(L*W*H): L4500*W905*H1260mm
  • Weight: 348kg
  • Certification: CE Certification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: digital poster tarpaulin wide format ink jet printer
  • Printhead: Spt 510 Printhead 8
  • Printing Ink: SK4 solvent based ink/Eco solvent ink
  • Color: 4 Colors (CMYK)
  • Media type: Vinyl,Flex,Polyester,Back-lit Film,Roll Media or Sheet Media
  • Maximum printing width: 3200mm(125,98inch)
  • Auto Cleaning System: Positive Cleaning Anti-clogged Flash Function
  • Printhead Height: Above Media Adjustable
  • RIP Software: Maintop/UitraPrint/Photoprint
  • Operation Environment: Temperature:20-28 Humidity:40%-70%

Packaging & Delivery

Packaging Details: Packed in wooden box
L4,590mm X W970mm X H1550mm 591kg
Delivery Detail: Within 3-7 working days
Product Description

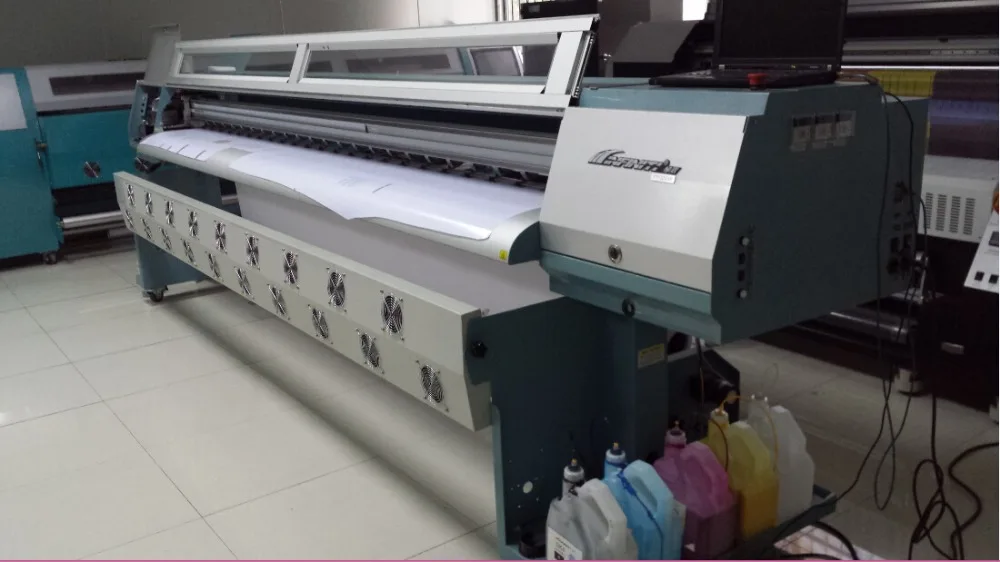

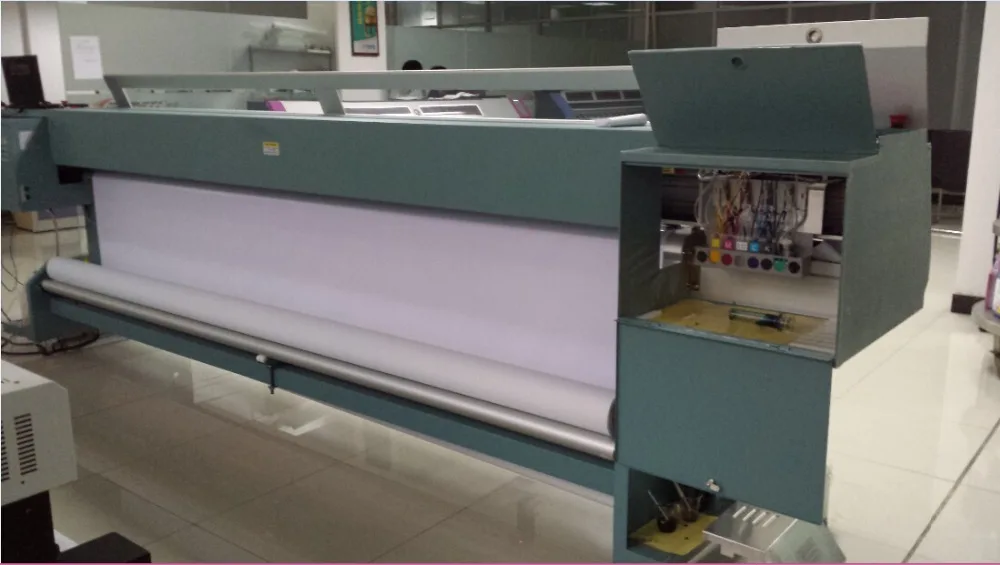

3.2m Large Format Solvent Printer FY-3208R

> SPT Instrument Group SPT printhead, 510 nozzles per printhead.


> The voltage of the printhead is able to adjust automatically depending on the temperature. This will solve the problem on nozzle clogging under huge temperature change.


> The function of skipping white space is added to increase productivity.


> The adjustment of bi-direction, step and carriage moving speed can be modified during printing.

> Edge feather function can blur the pass line and feather pass edge.

> Well designed alloy-aluminum girder is installed to decrease the noise during printing. Achieve the perfect quiet working environment.

> Photoprint / Maintop / Wasatch software provide user-friendly interface and handy function with two types of printing.

> 100% single color black is used on printing black text to avoid mixture of color.

> Control system has the function of resuming printing after the power is cut off. This helps you to save unnecessary loss of cost.

> The powerful suction fans equipped under the printing platform to avoid the collision between the carriage and the media, high resolution can be obtained.

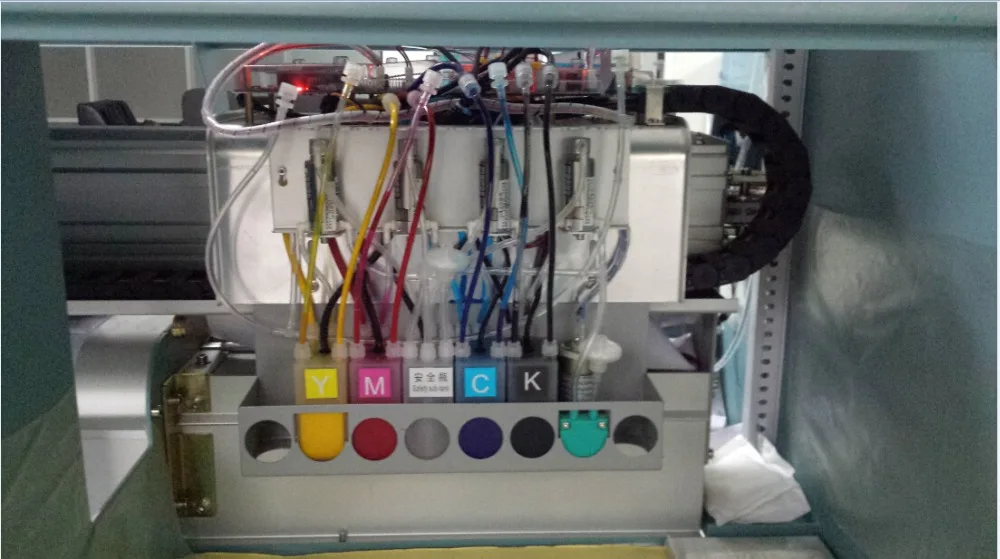

Auto Cleaning System

Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System

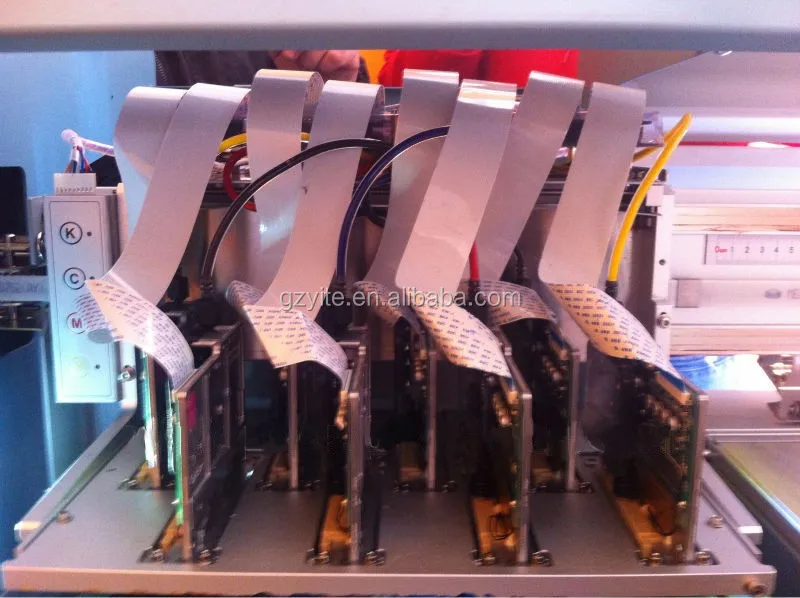

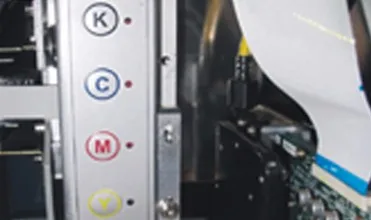

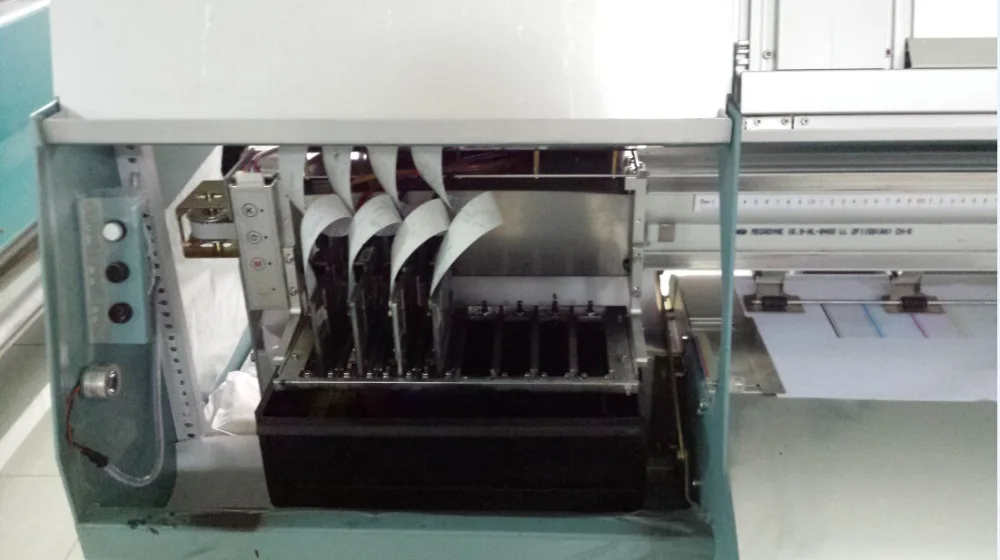

Printhead

Industrial printhead with long life span and high production. SPT Instrument Group SPT printhead, 510 nozzles per printhead.

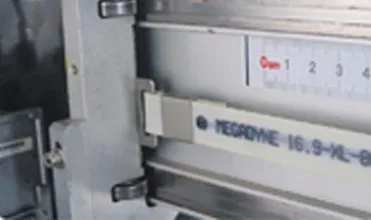

Carriage Moving System

8 sets of bearing plus 4 pieces of steel guide are utilized to move the carriage stably and steadily.

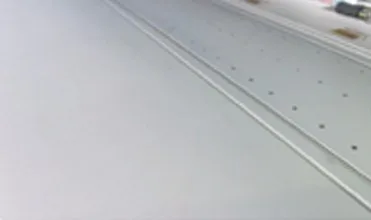

Platform and Girder

Platform and girder are made of perfect designed alloy alummum, which ensures excellent machanical movement and printnig quality.

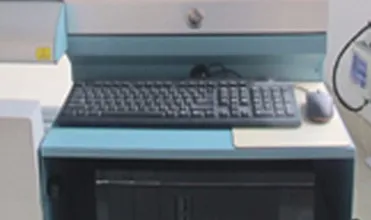

Computer, Monitor, Key Board

Computer, Monitor, Key Board are mounted on printer for ease of operation.

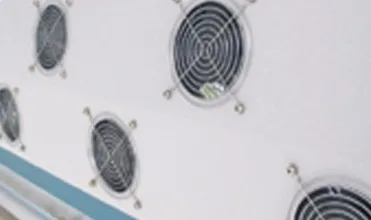

Dry System

19 cooling fans provide immedate dry of printing, obtioanl IR system.

SPECIFICATION OF FY-3208R PRINTER
Model
FY-3208R
Printhead
Drop on demand Piezo Head(SPT510-35PL)
Mumber of Printhead
8 Heads
Maximun Print Width
3,200mm(125.98”)



Print Speed
360X360dpi 1Pass 101m2/hr
240X720dpi 2Pass 76m2/hr
240x1080dpi 3Pass 51m2/hr
360x1080dpi 3Pass 34m2/hr
720x720dpi 4Pass 26m2/hr


Media
Max.width
3,300mm(129.92')
Max.Weight
80kg
Type
Frontlit,Backlit,Vinyl,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper
Thickness
4mm(Max.)
Heating System
3 way intelligent heater
Auto Media Feeding&Take-up System
Equipped
Ink
Type
Capacity
1L or 5L per Color Main Tank
Auto Cleaning System
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print Interface
Optical Fiber
Power Specification
AC 220V/230V 50Hz/60Hz Printing: 660W Heater: 1450W
Operational Environment
Temperature:20°C-28°C Humidity:40%-60%
Compatible RIP Software
UltraPrint,Maitop
Dimension&Weight
Machine
L4,500mm X W905mm X H1,280mm 348kg
Packae
L4,590mm X W970mm X H1550mm 591kg
Our Service

Our Market Among Many Countries & Areas, we know the exact information of market in your place, will provide the best advice.

Pre-Sales Service

* 7 days 24 hours online inquiry and consulting support.

*Professional purchase guidance according to your local market.

* Sample testing support.

* View our Factory.

* Send Inquiry Now>>>

After-Sales Service

* Training how to instal the machine, training how to use the machine.

*English-Communicating Professional Techanican.

* Engineers availa to service machiner overseas.

* One year warranty

Packing & Delivery

Pack in strong wooden box
Dimension:
L4,590mm X W970mm X H1550mm 591kg
