1.6m 1.8m 3.2m 1440dpi Galaxy flex banner plotter large format eco solvent printer with dx5 print head

FOB Reference Price:Get Latest Price
US $3,400-8,500 / Set | 1 Set/Sets (Galaxy eco solvent printer in stock) (Min. Order)
Supply Ability:
50 Set/Sets per Month (Galaxy eco solvent printer in stock)
Port:
Guangzhou
Report Suspicious Activity
Overview
Quick Details
Type:
Inkjet Printer
Condition:
New
Plate Type:
Roll to roll eco solvent printer
Place of Origin:
China (Mainland)
Brand Name:
Galaxy
Model Number:
UD-181LC, UD3212LD
Usage:
Cloths Printer, Label Printer, Paper Printer, vinyl sticker eco solvent printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
220v
Gross Power:
2300w
Dimensions(L*W*H):
L3080*W990*H1260 mm
Weight:
204kg
Certification:
CE Certification
After-sales Service Provided:
Engineers available to service machinery overseas
Product Name:
Galaxy dx5 head flex banner large format eco solvent printer
Printing Resolution:
1440dpi
Printhead:
DX5 print head, 1or 2pcs obtional
Printing Ink:
Eco solvent ink, water based ink
Color:
4 color: CMYK
Media Type:
Vinyl,polyester,flex,PS board,KT board,PVC foam board,etc
Ink System:
Auto supply system
Ink Capacity:
1L per main tank of each color
Shipping Time:
Within 5-7 working days
Warranty:
One year warranty
Packaging & Delivery
Packaging Details
The large format galaxy eco solvent printer will be pakced in strong wooden box
Delivery Time
Shipped within 3-7 working days
Video Description
Product Description

1.6m 1.8m 3.2m 1440dpi Galaxy flex banner plotter large format eco solvent printer with dx5 print head

Main Features of Galaxy UD-LC series eco solvent printer

1) This Galaxy eco solvent printer equipped with one or two DX5 head1440dpi High resolution.

2) Can print both roll to roll printing media and work with flatbed, print directly on PS and KT board

3) Using Eco solvent ink or water based ink, suitable for both indoor and outdoor printing, Small odor good for enviroment.

4) Good printing soft ware machine. One year online tech support

Electrical requirement

The printer only supports AC 220V. A transformer is needed if the area is using AC110V.
The printer must be well grounded (the grounded voltage should be less than 0.3V, and the grounded resistance should be less than 3Ω).
UPS and voltage stabilizer is highly recommended.
Note:1.6m Heater: 1320W (6A), Printer: 330W (1.5A)
1.8m Heater: 1320W (6A), Printer: 330W (1.5A)
2.1m Heater: 1540W (7A), Printer: 330W (1.5A)
2.5m Heater: 1870W (8.5A), Printer: 330W (1.5A)
3.2m Heater: 1980W (9A), Printer: 550W (2.5A)
Note: The total power consumption of the machine cannot be higher than the assigned power on the socket.

SPECIFICATIONS FOR GALAXY UD-LC SERIES PRINTER
Model
UD-161LC
UD1612LC
UD-181LC
UD1812LC
UD-211LC
UD2112LC
UD-2512LC
UD-3212LC
Printhead
DX5 print head
No. of head
1pc
2pcs
1pc
2pcs
1pc
2pcs
2pcs
2pcs
Max print width
1600mm
1800mm
2100mm
2500mm
3200mm


Print Speed
4pass
15
28
16
31
17
34
36
44
6pass
10
20
11
21
12
22
24
33
8pass
8
10
9
13
10
17
18
22
12pass
4
6
5
8
6
10
12
16
Media Type
Vinyl, polyester, flex, back-lit film, PS board, KT board, PVC foam board, etc
Printing Ink
Water based ink / Eco solvent ink (4 color)
Auto media feeding system
Equipped(Max.Media Weight 25kg
Equipped(Max.Media Weight 40kg
Auto Cleaning System
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System
Equipped
Print interface
USB2.0
Printhead Height
2 to 10mm from media
RIP software
Ultraprint,maintop,Wasatch
Input power
AC220V,50Hz/60Hz
Machine Dimension
L2820*W990*H1,260mm/200KG
L3080*W990*H1260 mm/204KG
L3380*W990*H1260mm / 225KG
L3,780*W990*H1,260mm / 242KG
L4480*W990*H1,260mm/342KG
Package Dimension
L2910*W1100*H845mm/360KG
L3190*W1100*H845 mm/381KG
L3490*W1100*H845mm / 422KG
L3,890*W1,100*H845mm / 443KG
L4590*W1100*H845mm/543KG

Application of Galaxy UD-LC Series Eco Solvent Printer

Using Eco solvent ink, suitable for both indoor and outdoor printing because it's Small odor and good for enviroment.

It can print on Flex banner, vinyl sticker, one way vision PP, Wall paper, Poster paper, Photo paper, Transfer paper, Poster stands, Flag stands, Knife flag stands, X-banner stands and more...

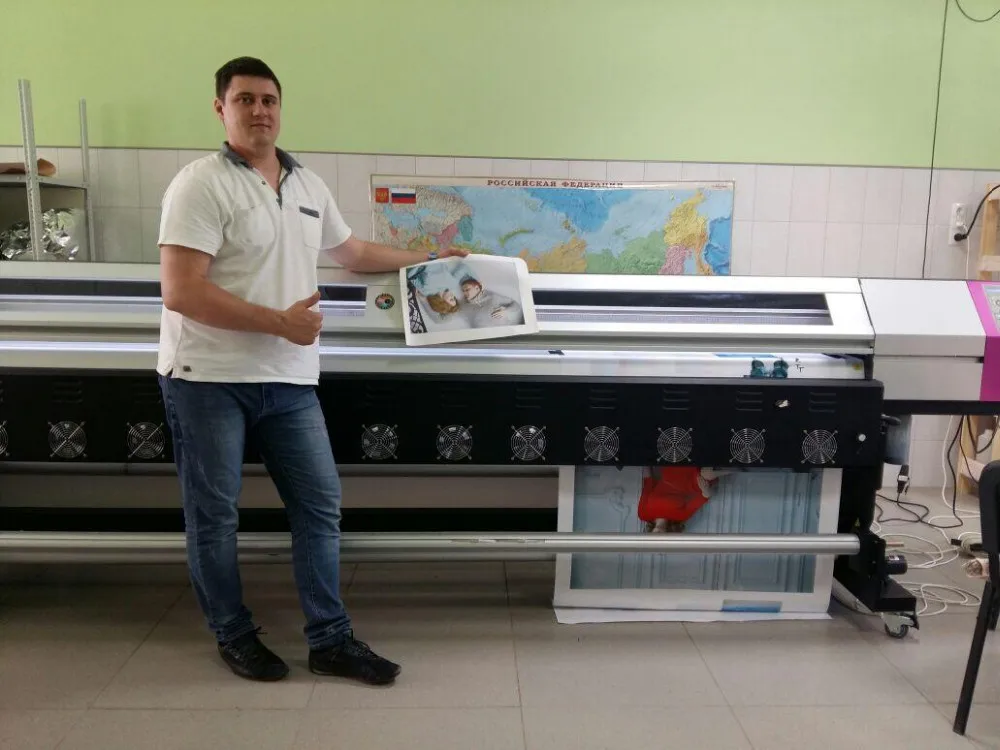

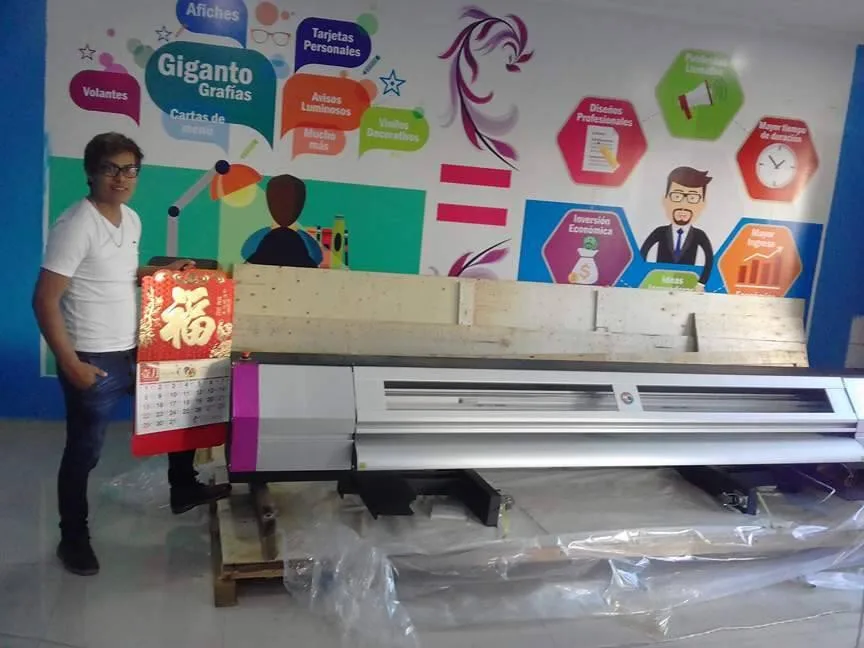

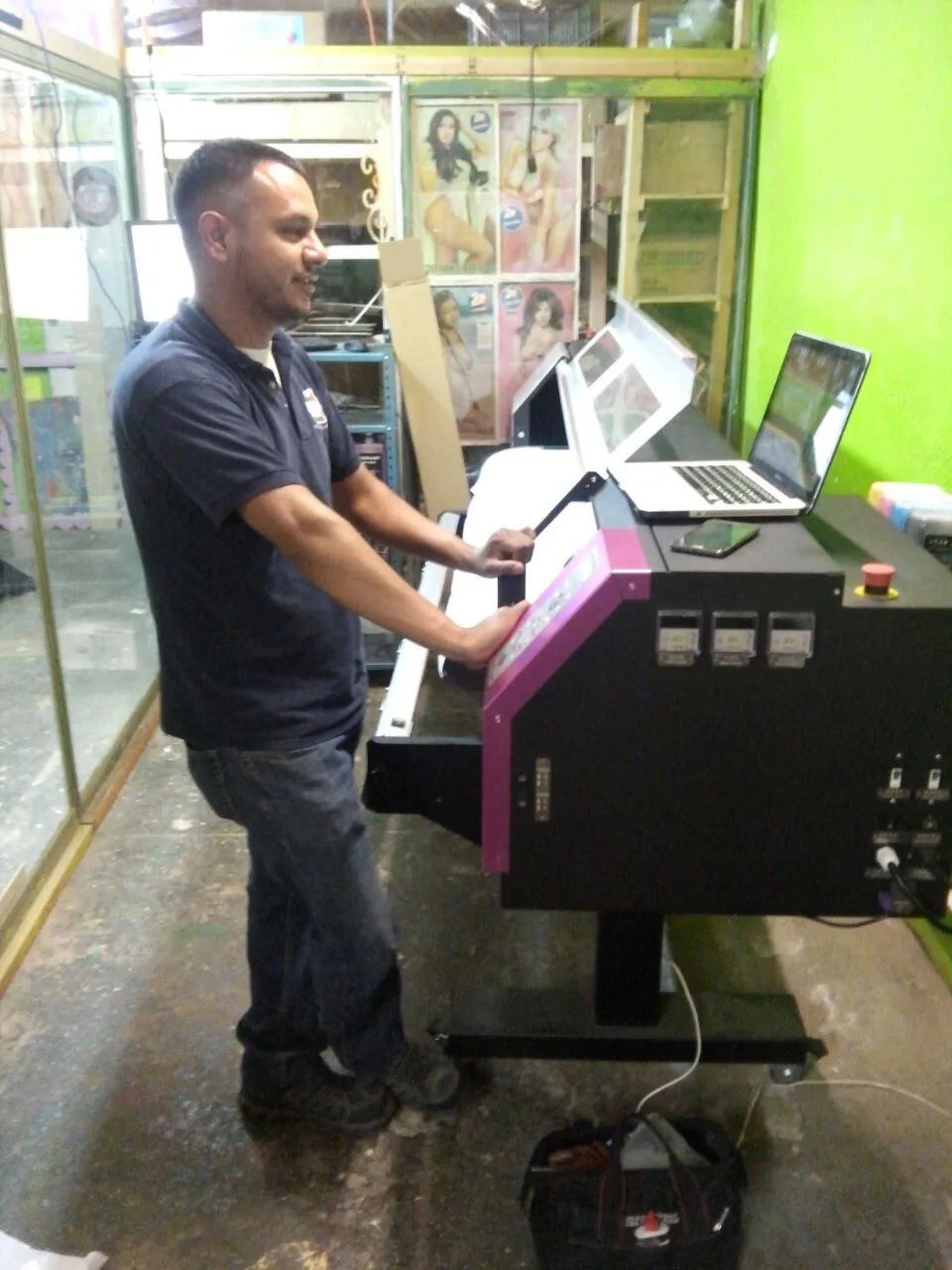

Customer feedback from our friendly clients.


Our Service

What service can we provide for you?

1.One year warranty, life-long after-sales service.
2.Technologist instant online support service.
3.One to one professional technical free training. We can send engineers to install the machine overseas.
4.For printer ink, the more you order, the cheaper the price !
6.Welcome to visit our Company or Factory at any time.

(1) 24-hours Online Service.

Good online service, instantly answer the questions for you.

(2) Free Training

One to one professional technical operation free training.

(3) Technical Support

Remote guidance maintenance; Online technical service is more speedy and efficiency.

(4) Ink & Spare Part Supply

Long-term supply of high quality original ink and spare parts.

Packing & Delivery

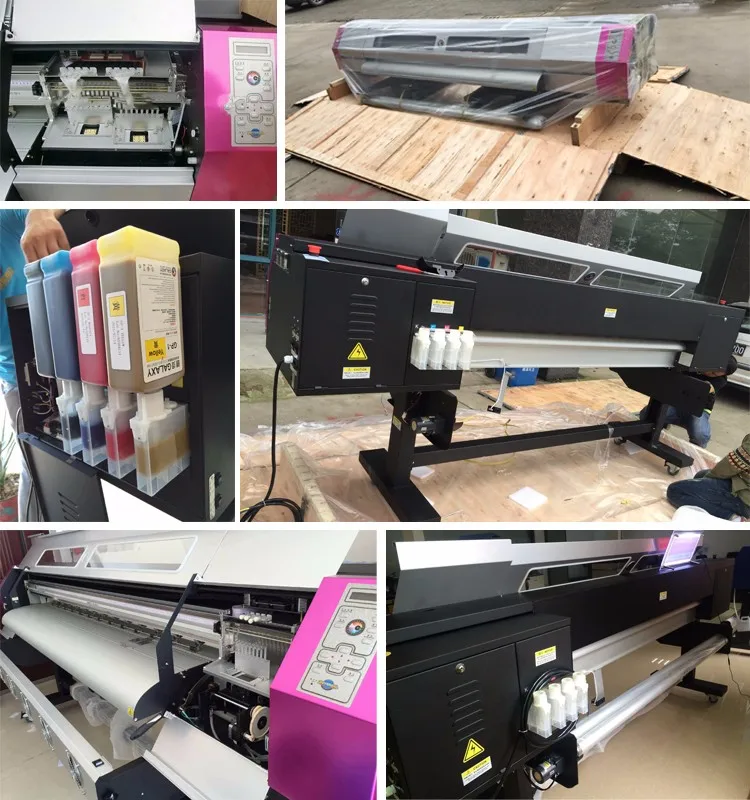

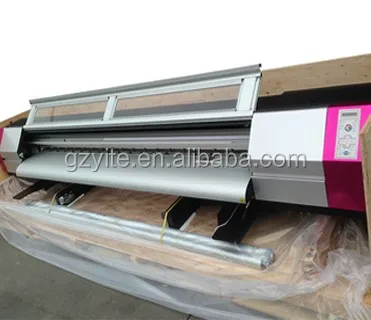

Packaging of UD-LC series printer
Packed in strong wooden box.

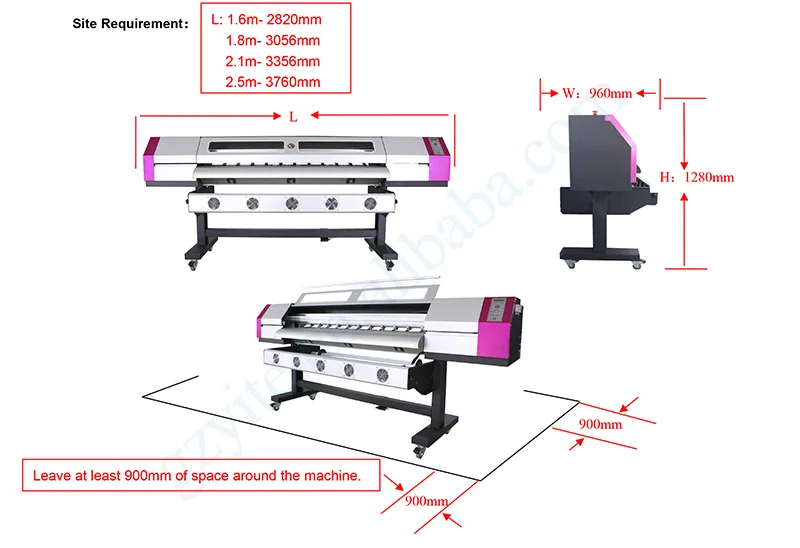

Printer Size
1.6m: L2820 x W990 x H1260mm/200KG
1.8m: L3080 x W990 x H1260mm/204KG
2.1m: L3380 x W990 x H1260mm/225KG
2.5m: L3780 x W990 x H1260mm/256KG


PackagingDimension
1.6m: L2860 x W1050 x H685mm/377KG
1.8m: L3140 x W1050 x H685mm/381KG
2.1m: L3490 x W1100 x H845mm/422KG
2.5m: L3890 x W1100 x H845mm/457KG
Our Company

Our service covers a number of countries, Iran, Mexico, Pakistan, India, Syria and other countries have our agents. With its high quality services and high quality products, KingJet printer is loved by customers all over the world.
