Quick Details

  • Type: Inkjet Printer
  • Condition: New, konica 512 printhead
  • Plate Type: Roll to roll flex printing machine
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Taimes
  • Model Number: T5
  • Usage: Cloths Printer, Label Printer, Paper Printer, flex banner, sticker printer, digital printing
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 220V
  • Gross Power: 50Hz/60Hz 2300W
  • Dimensions(L*W*H): L4,630mm *W880mm*H1,050mm
  • Weight: 680kg
  • Certification: CE Certification
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Factory price Digital Flex Printing Machine with Konica KM512 Heads
  • Brand: Taimes
  • Model number: konica KM512 printing machine
  • Printhead used: konica 512 printhead
  • MOQ: 1 piece
  • Promotion: heat printhead plate
  • Ink use: konica 512 solvent ink
  • Package: wooden package

Packaging & Delivery

Packaging Details L4,630mm X W860mm X H1,4200mm
Delivery Time Within 7 working days
Product Description

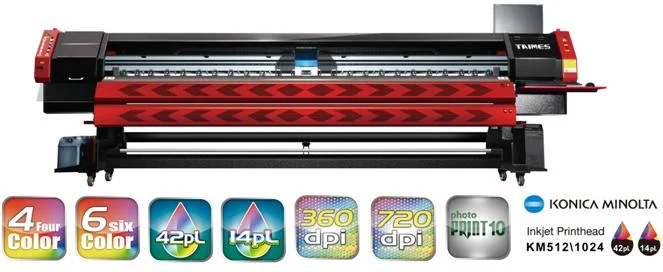

T5 SERIES SOLVENT PRINTER

T5 series printer equipped with Konica 512/1024 14pl/42pl head, the printing speed can up to 66 sqm/h under the production mode.

Especially to deserve to be mentioned that the T5 is at a really competitive price among other solvent printers. It means that T5 is a high cost-efficient outdoor printer for advertising printing, such as flex banner, vinyl, car sticker, Mesh ect.

SPECIFICATIONS FOR TAIMES T5 LARGE FORMAT SOLVENT PRINTER
Printhead
Konica 512/1024 head (14pl/42pl obtional)
Max Printing Width
3200mm







Printing Speed
KM512/42PL-4H
KM512/42PL-8H
KM512/14PL-4H
KM512/14PL-8H
180x720dpi 2pass
42sqm/h
 83 sqm/h
360x360dpi 2pass
26 sqm/h
52 sqm/h
240x720dpi 2pass
33 sqm/h
66 sqm/h
720x720dpi 2pass
22.8 sqm/h
45.6 sqm/h
180x1080dpi 3pass
27 sqm/h
54 sqm/h
360x1080dpi 3pass
17 sqm/h
34 sqm/h
240x1080dpi 3pass
21 sqm/h
42 sqm/h
720x1440dpi 4pass
11.3 sqm/h
22.6 sqm/h
180x720dpi 4pass
21 sqm/h
42 sqm/h
720x1080dpi 6pass
7.7 sqm/h
15.4 sqm/h
240x720dpi 4pass
17 sqm/h
33 sqm/h
720x1440dpi 8pass
5.7 sqm/h
11.4 sqm/h
Media Type
Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
RIP Software
PhotoPRINT10.5 or Maintop V5.30

Main Features

1) Excellent mechanical T shape frame structure, main bottom frame was wholly milled by German imported 6 meter planer type milling machine, which error is only less than 0.05mm.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

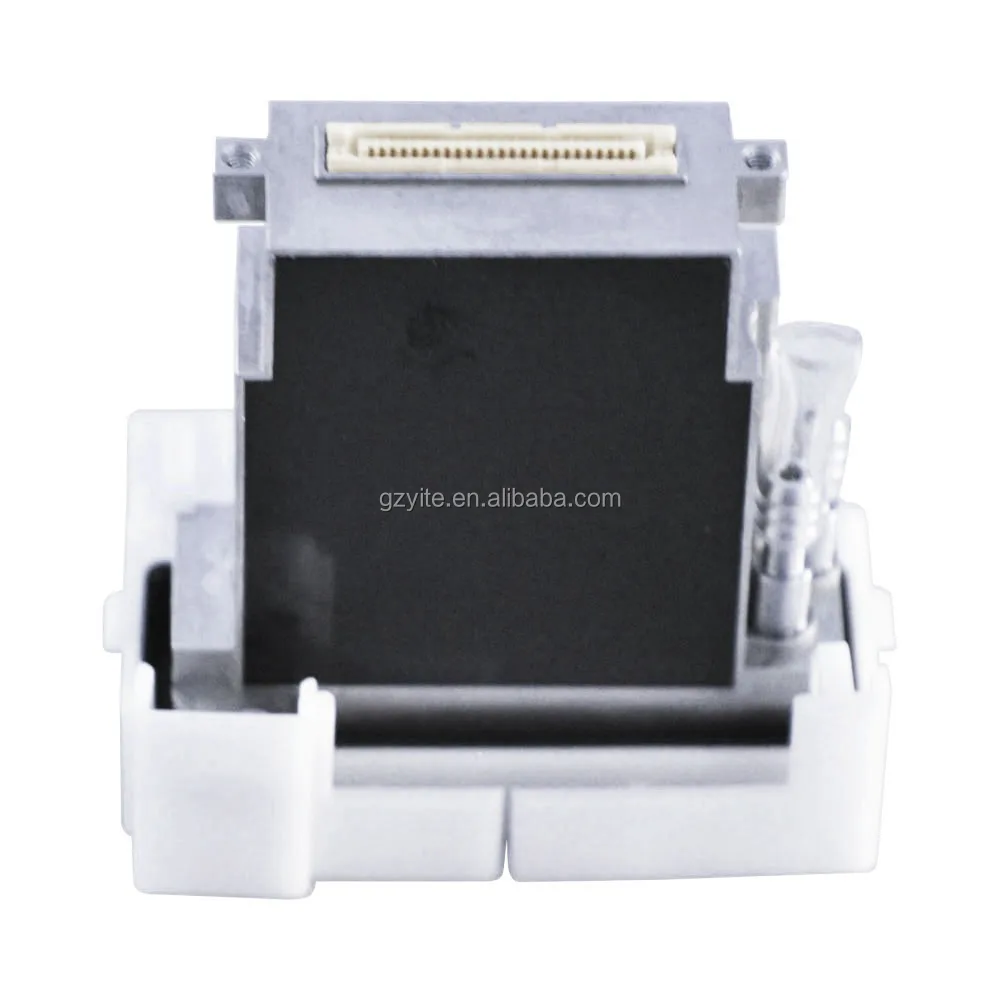

Printhead

Name: Konica 512 head

Original: Japan

T5 equipped with Konica 512 head, which is high resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl and 4pl respectively.

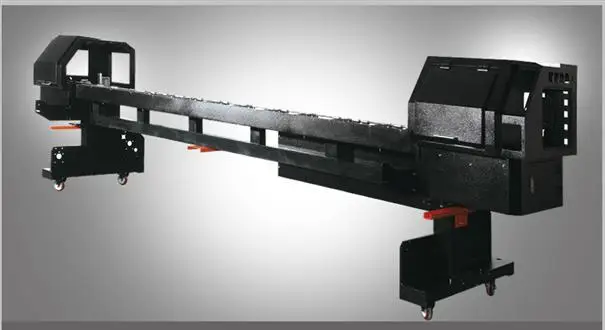

T5 printer machine body

TAIMES innovative research & develop the advanced & excellent Mechanical and electrical control system:T shape frame structure, main bottom frame was wholly milled by German imported 6 meter planer type milling machine, which error is only less than 0.05mm.

Main Board

Powerful components, always ensure stable and efficient machine printout

Konica Minolta certified and strongly recommended control system, developed printhead’s best core performance while the boards are rarely fault.

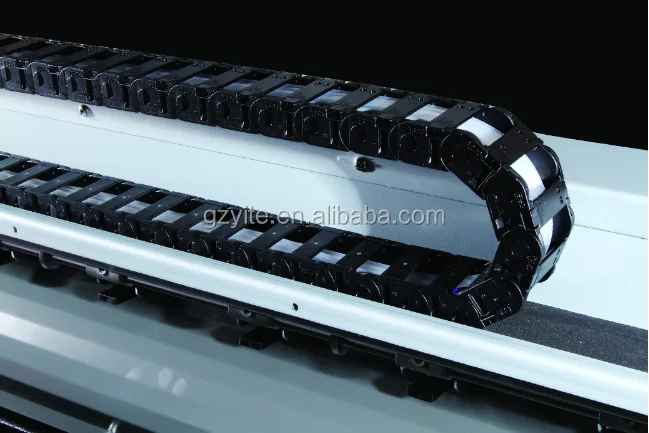

Rail

Adopt the TAIWAN HIWIN rail; make sure the long use in printing and head carrier moves steadily and quietly. The German IGUS chain has been certified with its quality.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Send Inquiry Now>>>

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers availa to service machiner overseas.

* One year warranty

Our Market Among Many Countries & Areas,
we know the exact information of market in your place,
will provide the best advice.

South America

Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela

North America

Mexico , Panama , Dominican Republic ,Guatemala Honduras

Africa

Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia

European

Poland ,France , Spain , Russia, Esthonia ,Portugal .....

Our Company

One-Stop Purchase: Yite (Guangzhou) Trade Co., Ltd

High Reputation
We are a professional & realiable supplier of digital printer, printing ink & printer parts with 10 years' experience,
who has owned high reputation in this field.

Professional & efficient service
YITE service team gradually accumulate experience for decades. Nearly 10 years Oversea service experience, we can rapidly response to clients and solve problem immediately.
Famous Exhibition
We are active in attending Exhibitions, like Guangzhou, Shanghai, Turkey, India Brazil, Malaysia etc. we've built up business with thousands of clients from all over the world.
Visit us
Welcome to visit our company, we will show you a competitive company with high quality & reasonable price.
